SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring

    Buy cheap SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring from wholesalers

    Buy cheap SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring from wholesalers
    • Buy cheap SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring from wholesalers

    SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring

    Ask Lasest Price
    Brand Name : JARCH
    Model Number : JSR-TH122-8P10-24S
    Certification : CE,FCC,ROHS
    Price : US$99-600/PIECE
    Payment Terms : T/T,PAYPAL
    Supply Ability : 1000 PICES/ PER WEEK
    Delivery Time : 5-8 WORKING DAYS
    • Product Details
    • Company Profile

    SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring

    Rotary Platform Military Equipment Through Hole Slip Ring Stainless Steel House Diameter 122mm Wind Generator Slip Ring

    High Light:

    122mm through bore electrical slip ring


    JARCH slip rings are through-hole slip rings (the center hole can pass through the driveshaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas, and liquid and other joints). Using an advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.


    Electrical slip ring Features & Advantages


    • Transmit analog and digital signal
    • Compatible with data bus protocols
    • Easy to install
    • Maintenance-free
    • Long service life
    • Rapid delivery
    • Custom solution

    Electrical slip ring Specification


    Circuits8
    Current Rating10A,24 signals
    Voltage240 V AC/DC
    Dielectric Strength≥1000V@50Hz between circuits
    Insulation≥500MΩ@500VDC
    Hole Diameter122mm
    Working Speed0~300 RPM
    ContactPrecious metal
    HousingS304/316
    Wire LengthStator:300mm; Rotor:300mm
    Working Temperature-20~+60℃
    Humidity≤60%RH
    Protection GradeIP68/IP66

    Electrical slip ring Application

    • Radar antenna
    • Rotary Platform
    • Engineering machine
    • Packaging Machine
    • Test Equipment

    Electrical slip ring Product Display

    SS IP68 10A 24 Signals 100RPM 122mm Through Hole Slip Ring


    Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufactures like housing or other mounting-related mechanical parts.

    Through Bore Slip Ring Product Details

    Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.

    Custom slip rings are also available—Contact us to discuss your custom requirements.

    SizeBody DiameterBore DiameterSignal Count
    TH0317 mm3 mm2-8 circuits
    TH0522 mm4.5 mm2-8 circuits
    TH1254 mm12.7 mm2-24 circuits
    TH2578 mm25.4 mm2-48 circuits
    TH3899 mm38.1 mm2-48 circuits
    TH50120 mm50 mm2-72 circuits
    TH60135 mm60 mm2-96 circuits
    TH70155 mm70 mm2-96 circuits
    TH80180 mm80 mm2-96 circuits
    TH90190 mm90 mm2-96 circuits
    TH100203 mm100 mm2-96 circuits
    TH300*********
    TH500*********




    JARCH TH Series Through Bore Slip Rings

    Through bore size 3mm to 900mm

    Circuit number 2-350

    Operation speed:up to 250rpm, 800rpm, 1500rpm

    Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.

    Power circuit and Ethernet signal circuit can be integrated to one unit slip ring

    ABS plastic housing and AL housing are optional

    Flexible, color-coded, silver-plated, Teflon® insulated lead wires

    Contact material silver to silver coating

    Standard wire leads length is 500mm

    Standard temperature is -20°C to +80°C

    Insulation strength 500V AC@50HZ 60S

    Insulation resistant 500MΩ 500VDC

    Long life cycles up to 80 million cycles

    Protection grade IP 51, IP54, IP 65

    Ethernet circuits can transmission 100Mbps, 1Giga data.


    High Performance, Long-Life Hollow Shaft Slip Rings
    Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
    Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
    TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.

    Features & Benefits of TH Series Through Bore Slip Rings

    • Multiple sizes available
    • Modular design
    • Durable construction for long working life
    • Maintenance free operation
    • Easily customizable—Contact us for custom slip ring units
    • CE and RoHS Compliant

    Common Hollow Shaft Slip Ring Applications

    • Wind generator slip rings
    • Rotary tables
    • Packaging machinery
    • Bottling machinery
    • Cable reel through bore slip rings
    • Robotic and automated equipment
    • Machinery turrets and tool changers
    • Medical equipment
    • Downhole inspection equipment
    • Pan and tilt heads
    • Typical Applications:

      Industrial machinery-machining center, rotary index table

      Heavy equipment turrets, cable reels, test equipment

      Packaging machines, palletizing machines, magnetic clutch

      Process equipment

      Rotary sensors, emergency lighting, robotics

      Medical equipment

      radar system

      labeling

    Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.

    Hot Tags: standard through bore slip ring, China, manufacturers, suppliers, factory

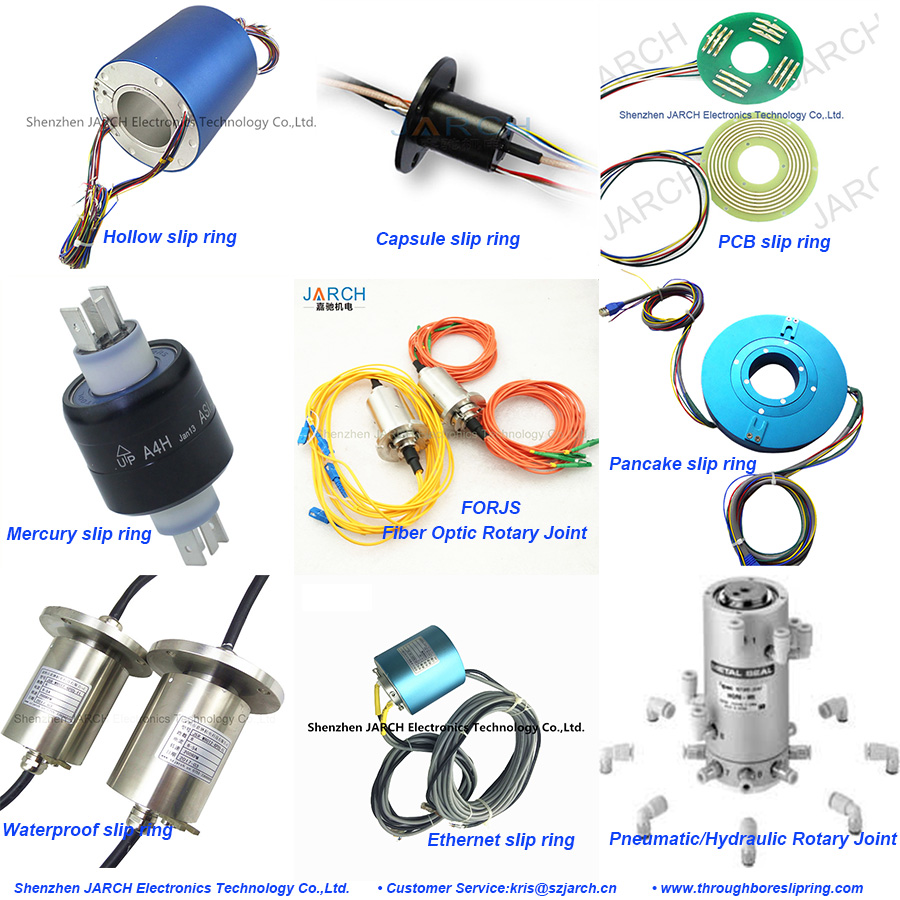

    Product Lines


    Through Hole Slip Rings

    Capsule Slip Rings

    MIniature Slip Rings

    Super Mini Slip Rings

    Pancake Slip Rings

    Separate Slip Rings

    Pin Connection Slip Rings

    HDMI Slip Rings

    USB Slip Rings

    Ethernet Slip Rings

    EXP Slip Ring

    Waterproof Slip Ring


    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high-quality slip rings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    Jinpat established a slip rings business in 2006. We have thousands of customers who accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with a perfect solution for your needs.
