6 Circuits Through Hole Slip Ring With 12.7mm Hole Dia And 380VAC
Voltage Slip Rings Collector
| High Light: | hollow shaft slip ring,through bore electrical slip ring |
|---|
JARCH slip rings are through-hole slip rings (the center hole can
pass through the driveshaft, gas-liquid passage; it can also
integrate high frequency, fiber, encoder, waveguide, gas, and
liquid and other joints). Using an advanced fiber brush, reliable
contact is guaranteed with very low friction. The center hole can
be selected from 0 to 1000mm, the current can be selected from mA
to 5000 amps, and the voltage can be up to 10000 volts, which can
fully meet your different transmission schemes.
Electrical slip ring Features & Advantages
- Transmit analog and digital signal
- Compatible with data bus protocols
- Easy to install
- Maintenance-free
- Long service life
- Rapid delivery
- Custom solution
Electrical slip ring Specification
| Circuits | 6 |
| Current Rating | 10A |
| Voltage | 240 V AC/DC |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation | ≥500MΩ@500VDC |
| Hole Diameter | 12.7mm |
| Working Speed | 0~300RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Wire Length | Stator:300mm; Rotor:300mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Electrical slip ring Application
- Radar antenna
- Rotary Platform
- Engineering machine
- Packaging Machine
- Test Equipment

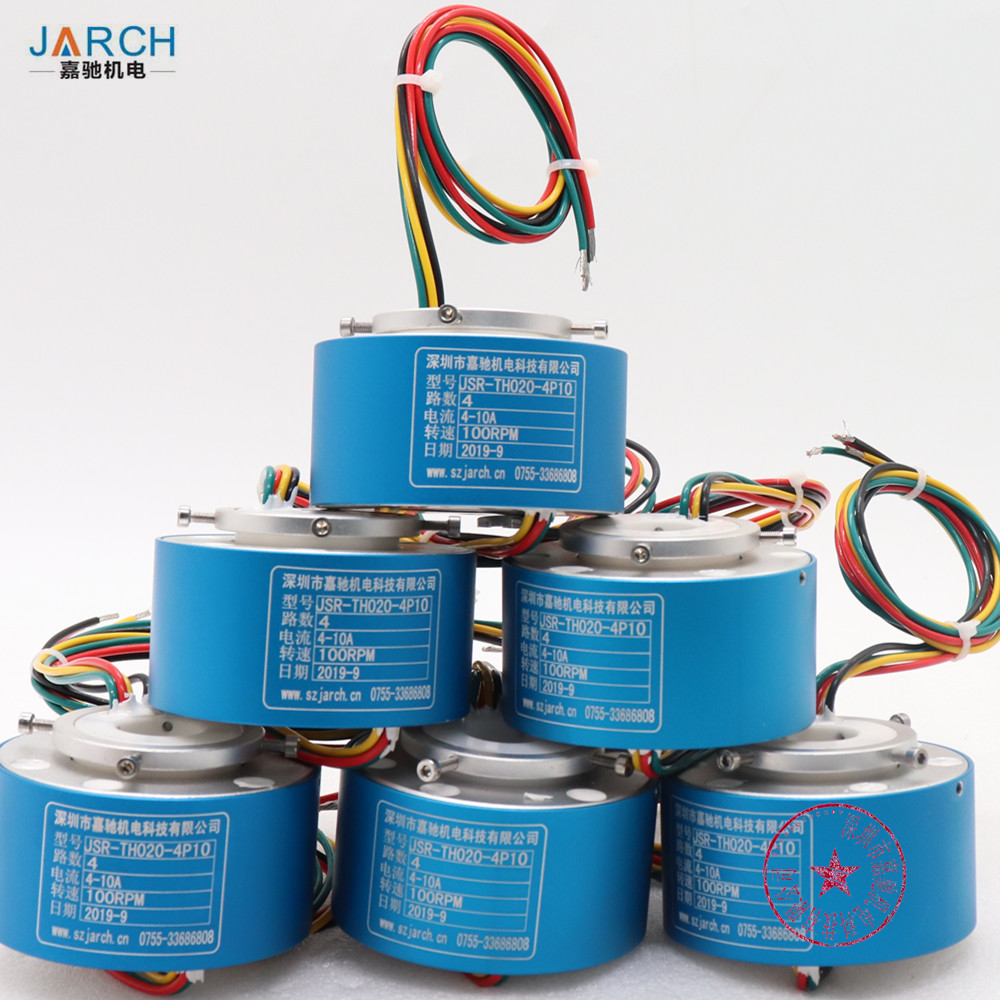

Electrical slip ring Product Display
Apart from providing connector or terminal processing for clients,
we have our own CNC center so that we can provide one-stop service
of supporting parts manufactures like housing or other
mounting-related mechanical parts.
Through Bore Slip Ring Product Details
Whether you’re looking for a wind generator slip ring, slip rings
for robotic manufacturing equipment, or a solution for any other
challenging application, JARCH has what you need. General
specifications for our hollow shaft slip rings are listed below.
Custom slip rings are also available—Contact us to discuss your custom requirements.
| Size | Body Diameter | Bore Diameter | Signal Count |
| TH03 | 17 mm | 3 mm | 2-8 circuits |
| TH05 | 22 mm | 4.5 mm | 2-8 circuits |
| TH12 | 54 mm | 12.7 mm | 2-24 circuits |
| TH25 | 78 mm | 25.4 mm | 2-48 circuits |
| TH38 | 99 mm | 38.1 mm | 2-48 circuits |
| TH50 | 120 mm | 50 mm | 2-72 circuits |
| TH60 | 135 mm | 60 mm | 2-96 circuits |
| TH70 | 155 mm | 70 mm | 2-96 circuits |
| TH80 | 180 mm | 80 mm | 2-96 circuits |
| TH90 | 190 mm | 90 mm | 2-96 circuits |
| TH100 | 203 mm | 100 mm | 2-96 circuits |
| TH300 | *** | *** | *** |
| TH500 | *** | *** | *** |
JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications
where signals and power need to be transferred, and a through-hole
is required to pass either a shaft or other feed through. Designed
for compact spaces, they are especially well-suited slip rings for
use in wind turbines and generators.
Through bore size 3mm to 900mm
Circuit number 2-350
Operation speed:up to 250rpm, 800rpm, 1500rpm
Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to
400A.
Power circuit and Ethernet signal circuit can be integrated to one
unit slip ring
ABS plastic housing and AL housing are optional
Flexible, color-coded, silver-plated, Teflon® insulated lead wires
Contact material silver to silver coating
Standard wire leads length is 500mm
Standard temperature is -20°C to +80°C
Insulation strength 500V AC@50HZ 60S
Insulation resistant 500MΩ 500VDC
Long life cycles up to 80 million cycles
Protection grade IP 51, IP54, IP 65
Ethernet circuits can transmission 100Mbps, 1Giga data.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings
use a modular design that allows for unprecedented flexibility with
respect to package size and circuit count. We can provide numerous
combinations of high current power circuits and low current signal
circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with
bore diameters from 3mm to 100mm. Large diameter through bore slip
rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled
brush technology to greatly increase service life. This innovative
design provides multiple contact points and low contact force,
dramatically reducing wear in demanding applications.
Features & Benefits of TH Series Through Bore Slip Rings
- Multiple sizes available
- Modular design
- Durable construction for long working life
- Maintenance free operation
- Easily customizable—Contact us for custom slip ring units
- CE and RoHS Compliant
Common Hollow Shaft Slip Ring Applications
- Wind generator slip rings
- Rotary tables
- Packaging machinery
- Bottling machinery
- Cable reel through bore slip rings
- Robotic and automated equipment
- Machinery turrets and tool changers
- Medical equipment
- Downhole inspection equipment
- Pan and tilt heads
Typical Applications:
Industrial machinery-machining center, rotary index table
Heavy equipment turrets, cable reels, test equipment
Packaging machines, palletizing machines, magnetic clutch
Process equipment
Rotary sensors, emergency lighting, robotics
Medical equipment
radar system
labeling
Contact JARCH today for the through bore electric slip rings your application
needs. Contact us for CAD files and solid models.
