    6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission

    JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint


    Product Description
    JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint

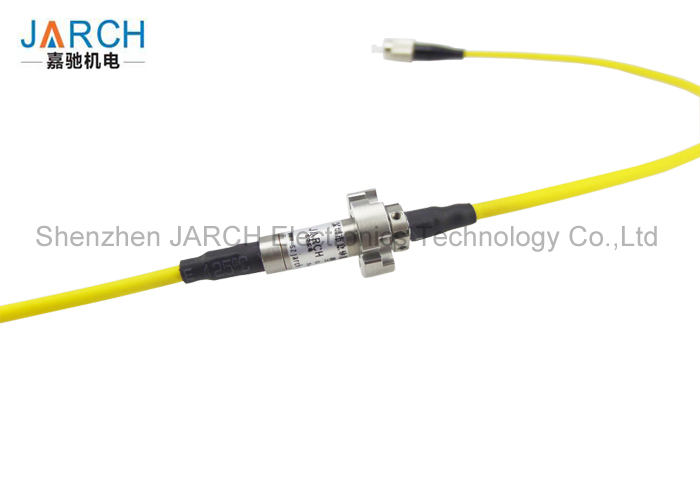

    SF series Fiber Optic Rotary Joints (FORJs) are extremely compact. So small they can even be used in the middle of fluid flows. They are the world's smallest and lightest. They feature very low insertion loss and impressive return loss performance. Model SF typically yields return loss figures higher than 60 dB.


    SPECIFICATIONS
    PARAMETERSVALUES
    Wavelength range650-1650 nm
    Insertion loss<2 dB (typical: <0.5 dB)
    Insertion loss ripple<+/-0.25 dB (typical: +/-0.15 dB)
    Return loss (SM)>40 dB (typical: 45 dB, 23 C), >55 dB (MJXA)
    Maximum speed2,000 rpm
    Water submersion1 m, (model RPC for pressure compensation)
    Pulling strength10 N (900 um buffer)
    Start up torque<0.01 Nm
    Estimated life cycle>500 million revolutions (1,000 rpm, 365 days, continous)
    Optical power handling23 dBm
    Working temperature-40 to 85 C
    Storage temperature-50 to 85 C
    Package stylePigtails on both ends
    Housing materialStainless steel
    Fiber typesSingle or multimode w/3 mm jacket (Kevlar/PVC)
    Connector typesFC, SC, ST, SMA, or LC (and APC finishes)
    Dimensions6.8 mm dia. x 28 mm length
    Weight10 g
    VibrationMIL-STD-167-1A
    Mechanical shockMIL-STD-810G
    IP ratingIP 68 for all models


    Benefits


    JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint

    • Using light signal transmission, no electromagnetic leakage.
    • Good sealing.
    • Resistance to electromagnetic interference
    • No contact transmission, no wear and tear.
    • Long life, can be up to 10 million RPM.
    • No friction, can be used in inflammable and explosive environment.
    • Can be used in extreme natural environment.
    • High magnetic current interference, also can work normally.



    Installation Instructions

    .jpg

    Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery


    Applications:

    • Between in undersea robot and control ship

    • Between in radar antenna and on-board signal processing system

    • With the chariot rotating tower car body console

    • Between in welding robot and console

    • Remote mechanical input and output devices and control

    • The photoelectric theodolite

    • The connection between the platform and spacecraft tracking


    Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through fusion splice (without the use of connectors). Insertion loss of all receptacle type of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.

    Company Information

    JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.


    JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint


    Packaging & Shipping

    express

    FAQ

    1.What technical data should be provided for our customized slip ring model.

    A:

    If you want to costomize the special slip ring model, you need provide details as below:

    a. Operatring speed(RPM)
    b. The type of installation

    c. Outline size

    d. Channels(the No. of single wire besides cable)
    e. Rated voltage & current for power rings and signal rings

    f. The signal type and related parameters(very important)

    g. Operating temperature h.IP(sealing requirements)


    2.How long is your production lead time?


    A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
    15 to 40 days for complex customized porducts.
