    1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel

    Ask Lasest Price
    Brand Name : JARCH
    Model Number : CA32112 L-wheel
    Certification : CE,FCC,ROHS
    Price : US$200-500
    Payment Terms : D/P, T/T, Western Union,Paypal
    Supply Ability : 1000 set/month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel

    Steel Reel Works 1000psi 200ft. Heavy Duty Hand Crank Air Water Hose Reel Drum

    120volt cord reel 50m cable reel stand empty optical fiber drum 2 wheels reel cart


    Download the Catalog Page for reference: cat25-long hose length series.pdf

    Download the CAD Drawing: 2D Drawing 3X112PDF.pdf

    1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel


    JARCH Cable Reels provide a superior solution to compactly manage large lengths of cable for your applications.
    • Industrial Duty Spring Reels
    • Mill Duty Spring Reels
    • Motorized Reels
    • Slip Ring Assemblies


    1. Material Composition: Steel & rubber

    2. Diamensions: Contact us to get more informations

    3. Package: Carton Box

    4. Wheel: 2 wheels and 4 wheels

    5. QTY: 550PCS/40'HC

    6. Four / Two wheel durable hose reel cart


    Reel Specifications and Dimensions

    Part NumberCA32112 L
    Series30000
    Weight (lbs)46
    Hose I.D. (in)1/2"
    Hose O.D. (in).750
    Hose Length (ft)200
    Pressure (psi)1000
    Hose End (in)
    Inlet (in)1/2 NPT(F)
    Reel Outlet (in)1/2 NPT(F)
    Hose IncludedNo
    Max Temperature (°F)250

    Fluid Path Materials
    Seal TypeBuna N
    Swivel MaterialSteel
    Shaft MaterialDuctile Iron
    Gooseneck MaterialDuctile Iron

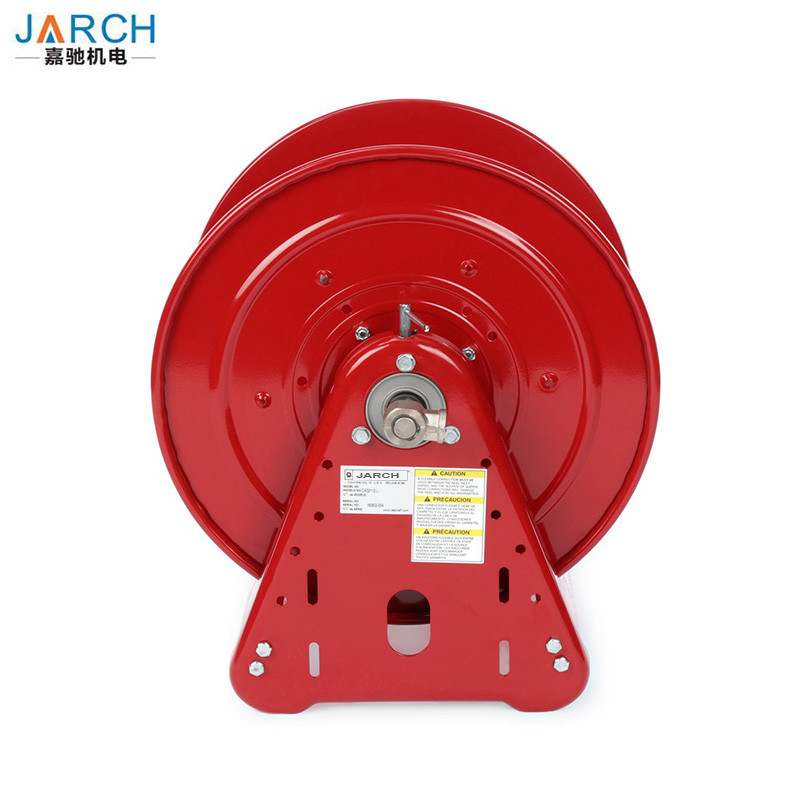

    Heavy Duty Hand Crank Hose Reel

    JARCH's Series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000’s vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.
    1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel


    1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel

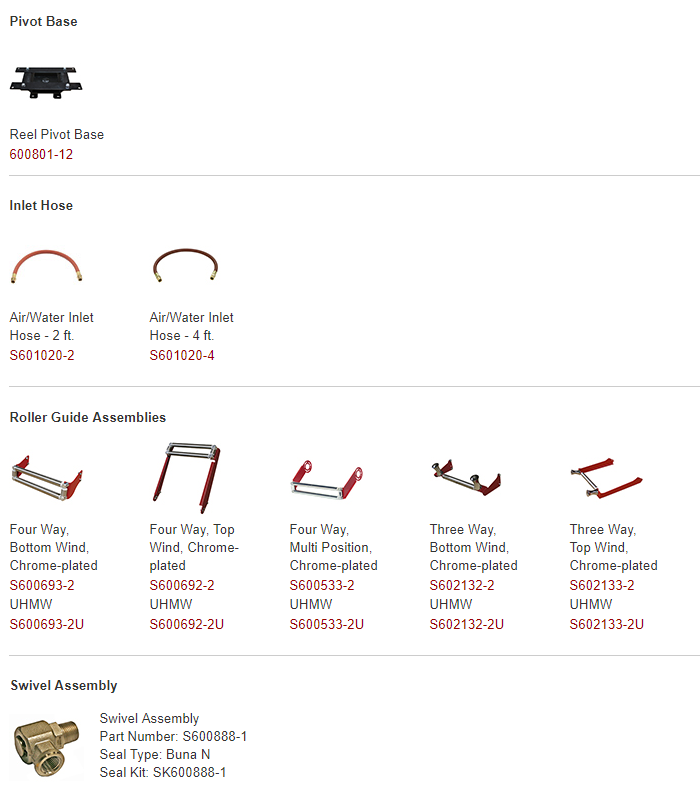

    Parts/Accessories

    General Air Hose Reels Benefits

    • Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel.
    • Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
    • Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
    • Easy to add tension - The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.

    1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel

    FAQ


    1.How do I increase or reduce spring tension?

    To increase spring tension:

    Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.

    To reduce spring tension:

    This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.


    2.How do I install a new drive spring and set pre-turns?


    We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.



    3.Can my spring driven reel be made "constant tension"?


    While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

    Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.


    4.Reel will not latch


    This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.

    Packaging & Shipping
    Packaging Details:Standard Export carton Package
    Delivery Details:Delivery time for Sample: 5 days / Delivery time for Order depends on quantity
    Shipping:BY DHL, FedEx, UPS or TNT......
