JARCH Medium Pressure Oil Hose Reels 1250 PSI 3/4" Dual Pedestal Fuel Spring Retractable Reels

Features

***Full flow stress-free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.

***Reinforced steel - The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.

***Quiet speed latch - The latch cam is designed for reliable quiet operation.

***Long life drive spring - The unitized cast aluminum fluid path with built-in declutching arbor virtually eliminates the possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.

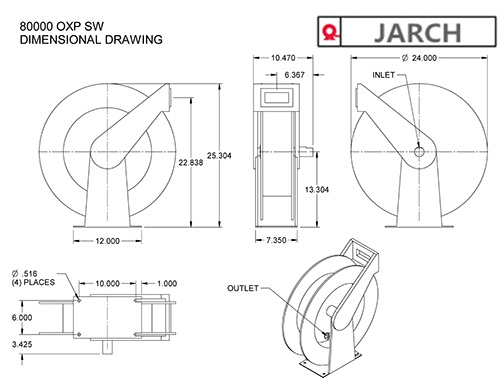

Outline Drawing

Product Uses

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand-feed hose back up through roller bracket assembly* until the loop is large enough to slip over a sheave. Add two or three wraps until the desired tension is achieved. Do not exceed spring capacity.

To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

2.How do I install a new drive spring and set pre-turns?

We have several different types of spring-driven reels. Each requires a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.

For how many wraps of "pre-tension" to put on the reel, please reference the chart below.

3.Can my spring-driven reel be made "constant tension"?

While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.

4.Material leaking from swivel

O-ring was worn out or wrong O-ring for the material being handled
Replace O-rings with an O-ring kit or replace them with correct rings for the material being handled.

The swivel may be loose or not enough pipe thread sealant on shaft threads
Replace O-rings with an O-ring kit or replace them with correct rings for the material being handled.
