    10m 15m Fuel Station Truck Hose Reel Spring Drive Type For DEF Diesel Oil Fuel hose reels

    Ask Lasest Price
    Brand Name : JARCH
    Model Number : JSR-L1000
    Certification : CE FCC
    Price : USD$100-500/Piece
    Payment Terms : D/P, D/A, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 500Piece/week
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

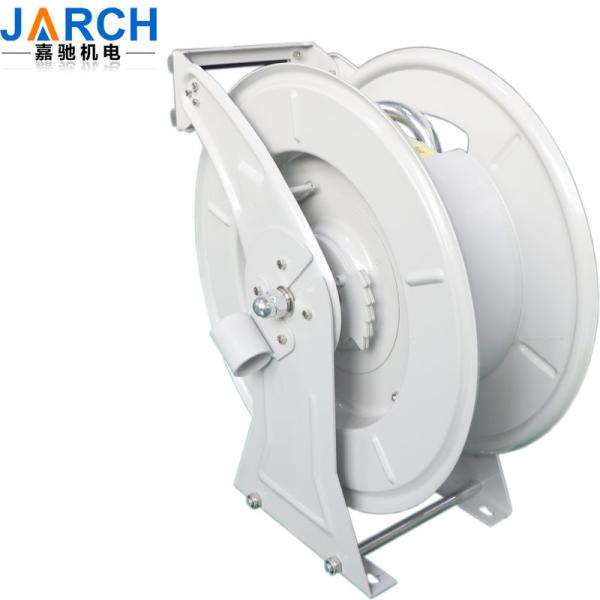

    10m 15m Fuel Station Truck Hose Reel Spring Drive Type For DEF Diesel Oil Fuel hose reels

    JARCH 10m 15m Fuel Station/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel


    Product Description

    3/4 in. x 50 ft. Heavy Duty Gas Hose Reel for DEF Diesel Oil Fuel

    JARCH's Series L1000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy-duty applications. Series L1000 reels are also supplied with JARCH's ball-bearing style swivel.

    Weight100lbs
    Series 10000
    Hose I.D. 3/4"
    Hose O.D. 1.188"
    Hose Length 50'
    Pressure 1250 psi
    Hose End 3/4" NPT(M)
    Inlet 3/4" NPT(F)
    Reel Outlet 3/4" NPT(F)
    Hose Included Yes
    Max Temperature 210 °F
    10m 15m Fuel Statation/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel10m 15m Fuel Statation/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel
    We powder coat parts individually before installation for superior coverage and better protection against corrosion.You won't have to worry about your spring losing its strength or breaking from normal usage.
    10m 15m Fuel Statation/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel
    Arm adjusts to 3 positions for your need,wall-mounted, hang, grounding...

    JARCH 10m 15m Fuel Station/Mini Fuel Dispenser Truck Gas Hose Reel for DEF Diesel Oil Fuel hose reel

    10m 15m Fuel Station Truck Hose Reel Spring Drive Type For DEF Diesel Oil Fuel hose reels10m 15m Fuel Station Truck Hose Reel Spring Drive Type For DEF Diesel Oil Fuel hose reels


    Features


    ***Full flow stress-free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.


    ***Reinforced steel - The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.


    ***Quiet speed latch - The latch cam is designed for reliable quiet operation.


    ***Long life drive spring - The unitized cast aluminum fluid path with built-in declutching arbor virtually eliminates the possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.


    Product Uses




    JARCH Main Product:


    1. Fiber optic rotary joint series

    2. Through bore slip ring series

    3. Electro-optical slip ring series

    4. Hybrid slip ring series

    5. Pneumatic rotary joint series

    6. Hydraulic rotary union series

    7. Capsule slip ring series

    8. Pancake slip ring series

    9. High current slip ring serials

    10.High-speed slip ring series

    11.Thermocouple slip ring series

    12.Miniature slip ring series

    13.Wind turbine slip ring series

    14.Ethernet slip ring series

    15.Explosion-proof slip ring series

    16.Mercury slip ring series


    10m 15m Fuel Station Truck Hose Reel Spring Drive Type For DEF Diesel Oil Fuel hose reels

    Packaging & Shipping
    Packaging Details:Standard Export carton Package
    Delivery Details:Delivery time for Sample: 3 days / Delivery time for Order depends on quantity
    Shipping:BY DHL, FedEx, UPS or TNT......



    100 ft. Reinforced steel Heavy Duty Dual Pedestal Hose Reel Long life drive spring Grease Cable Reels

    1.How do I increase or reduce spring tension?
    100 ft. Reinforced steel Heavy Duty Dual Pedestal Hose Reel Long life drive spring Grease Cable Reels

    To increase spring tension:

    Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand-feed hose back up through roller bracket assembly* until the loop is large enough to slip over a sheave. Add two or three wraps until the desired tension is achieved. Do not exceed spring capacity.

    To reduce spring tension:

    This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.


    2.How do I install a new drive spring and set pre-turns?


    We have several different types of spring-driven reels. Each requires a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.



    3.Can my spring-driven reel be made "constant tension"?


    While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

    Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.


    4.Material leaking from swivel


    O-ring was worn out or wrong O-ring for the material being handled
    Replace O-rings with an O-ring kit or replace them with correct rings for the material being handled.


    The swivel may be loose or not enough pipe thread sealant on shaft threads
    Replace O-rings with an O-ring kit or replace them with correct rings for the material being handled.


    Contact Us

    If you have any questions, pls contact us without any hesitation.
