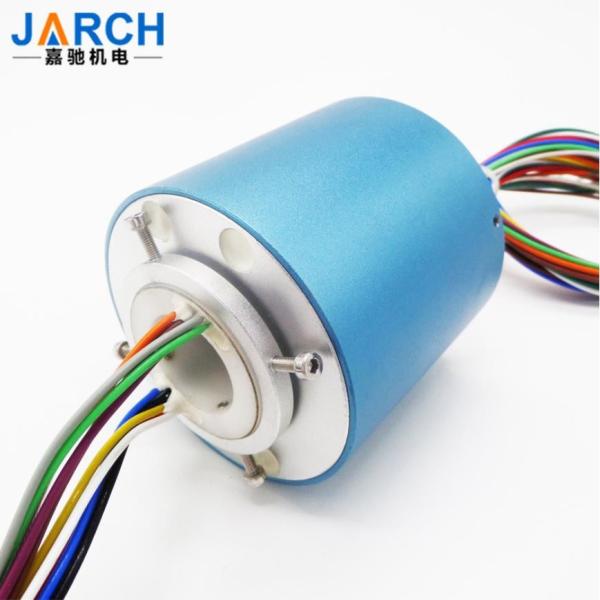

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.

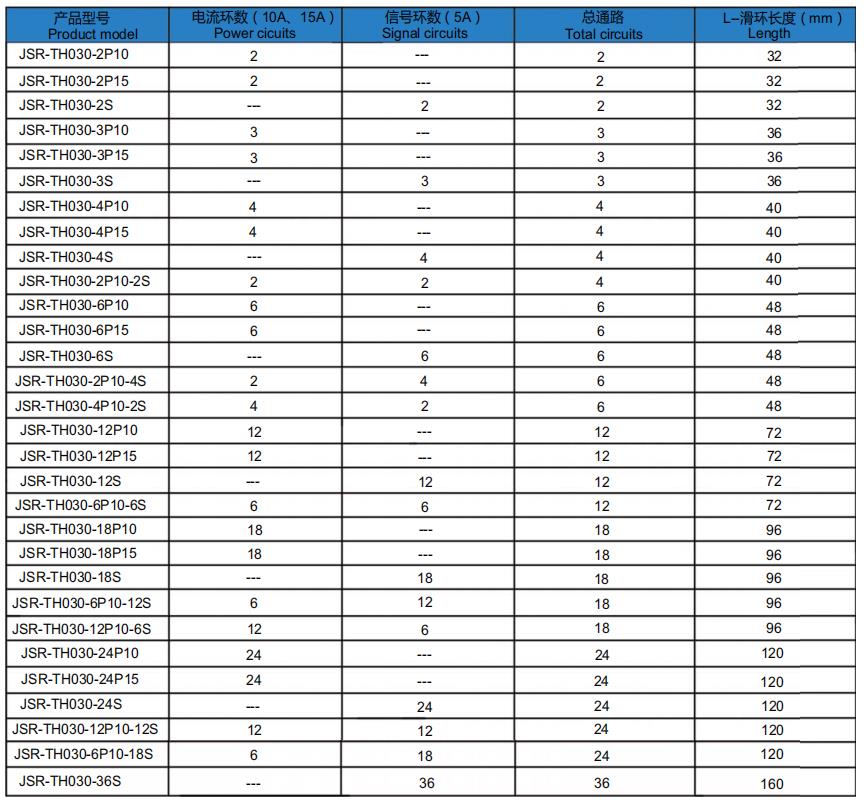

Model Explanation:

The TH038 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.

Benefits of High quality through hole slip ring with ID 30mm customized bore sliprings

· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery

Manufacture various kinds of slip rings as request, OEM acceptable.

The length of slip ring will be advised when rings and current details are options . Please contact JARCH technical department.

Applications of High quality through hole slip ring with ID 30mm customized bore sliprings

• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels

Installation Instructions:
High quality through hole slip ring with ID 30mm customized bore sliprings
Shaft Mounted

Flange mounted:

High quality through hole slip ring with ID 30mm customized bore sliprings
