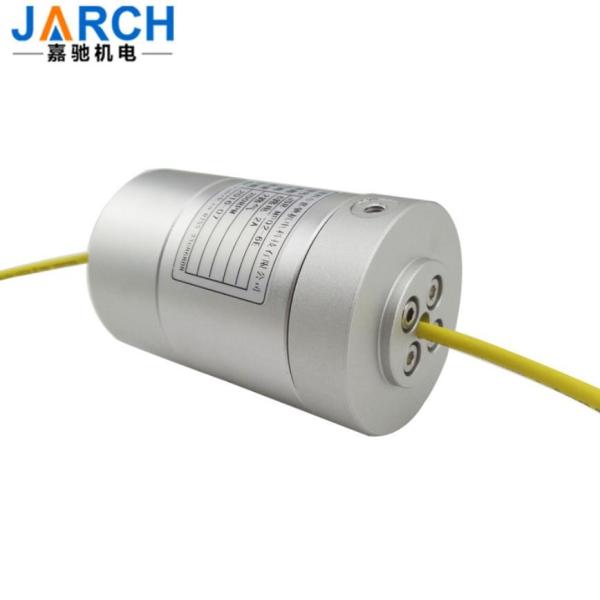

JARCH Electro slip ring joint hydraulic Pneumatic Rotary Union for
Ice cream machine
Structural characteristics of electric rotary joint of JARCH:
This type of rotary joint has multi-channel, can be integrated and
multi-pass in operation, each channel has its own independent
sealing system, the internal selection of imported wear-resistant
seals, and bearings as support, so that the friction rotation
distance is small, the operation is flexible, and the same medium
should be used for each channel, but the pressure of each channel
can be different. It is suitable for pneumatic rotating system,
rotating hydraulic system and rotating clamp of machining center.
1. Number of paths: 4 paths, medium: compressed air, temperature:
-20-+80 degree C
2. Inner stainless steel, shell material only use aluminum alloy
3. Speed: 0-50 rpm
4, channel pressure: 2 way 4mm vent pipe, positive pressure,
1.0Mpa.
| Electrical Spec. | Options |
| Rating voltage | 380VAC | Flange for set up |
| Rating current | 5A /Ring,10A /Ring,15A /Ring | The wire exit direction,length is optional |
| Insulation resistance | 1000MΩ at 500VDC | Can combine more circuits:1-126Ring |
| Dielectric strength | 600VDC at 50Hz | Higher voltage and current capacity |
| Electrical noise | 10mΩ@6VDC,50mA, 5Rpm | Higher rotational seed:1000Rpm,2500Rpm,5000Rpm |
| Mechanical Spec | Environment |
| Speed | 300Rpm | Working temperature | -40℃~+80℃ |
| Torque | 100N.cm | Mechanical vibration | MIL-SID-810E |
| Seal class | IP54 (IP68 Options) | Humidity | 10% to 90% RH non-condensing |
| Contact material | Precious Metal | Materials | Lead Free,RoHS compliant |
| Lead Wire | 12color 1.0mm2Teflon wire | CE Certified | YES |
| Life | 500million revolutions | The service life of the slip ring is determined by the working
speed, working environment and working temperature of the slip
ring. |
Drawing of JSR-MRQ02-05-6E
The length of Slip Ring Will Be Advised When Rings And Current
Details Are Options . Please Contact JARCH Technical Department.
Electro slip ring hydraulic Pneumatic Rotary Union 2-way gas 6-way
signal for rotating equipment
Other recomend rotary joint
Quick Details:
| Material: Aluminum | Technics: | Type: Coupling |
| Place of Origin: Shenzhen, China | Model Number: JSR-MQR6-M5 | Brand name: JARCH |
| Connection: M5 Screw | Shape: round | Head Code: round |
| Size: M5 | Medium: compressed air | Rotor material: Aluminum |
| Max speed: 3000RPM | Max pressure: 0.8Mpa | Max temperature: 80℃ |
Feature:
1.Passage quantity:6
2.Lifetime is up to 50 million revolutions
3.Max pressure:0.8 Mpa
4.Replace completely SMC MQR6-M5
5.It is standard products and on stock
Benefits:
1.Standard products, may replace completely SMC MQR series
products,the size is the same.
2.It is metal sealed structure, low torque.
3. Its speed is up to 200-3000 rpm
4.Long lifetime,it is up to 50 million revolutions.
Applications:
• Auto Machine
• Robot
• Dyeing, Rubber, Plastics, Chemical,Machine tool
Electro slip ring hydraulic Pneumatic Rotary Union 2-way gas 6-way
signal for rotating equipment
Installation Instructions:
Flange mounted:
JARCH main products:
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen,
China. JARCH has become one of the best-known Chinese brands in the
world for high quality slip rings and first-rate services. Since we
were founded in 1998, we have been committed to innovating,
developing and manufacturing high quality slip rings and providing
perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has
established long term business relationships with transnational
corporations, research institutes, military-industry departments,
famous universities as well as a lot of companies in various
industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your
project's requirements for performance, testing, qualification and
delivery. Our teams understand the importance of comprehensive
project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If
an assembly from our standard model does not fit your requirements,
our design team will work with you to design a slip ring assembly
that will meet your company's exact needs. With over 19 years of
experience JARCH has amassed over 10,000 drawings, thousands of
custom slip ring designs and experiences supporting customers
worldwide.
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample 3 days / Delivery time for Order depends
on quantity
Shipping:BY DHL, FedEx, UPS or TNT......
|
FAQ
| Q1: Are you a factory or a trading company? |
| A: We are a professional manufactory with High-level R & D team. |
| Q2: How many types of the slip rings do you have? |
A: We can supply all kinds of the slip rings.Such as minitary slip
ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD
combined-type,
disc slip ring,wind power slip ring,solar power slip
ring,through-bore slip ring, etc. |
| Q3: Can you supply the slip rings with high frequency signals
and(or) optical communication signals. |
| A: Yes, we can supply mixed signals slip rings as your request. |
| Q4: what's the working life of your slip rings. |
A: 30~50 millions revolutions for standard ones, 50~80 millions
revolutions for special ones,
We also can supply much higher revolutions as your special
requirement. |
| Q5: Do you supply OEM and ODM ? |
| A: Yes, we supply OEM and ODM. |
| Q6: What technical data should be provided for our customized slip
ring model. |
A: If you want to costomize the special slip ring model, you need
provide details as below: a.operatring speed(RPM)
b.the type of installation c.outline size d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings f.the signal type and related
parameters(very important) g.operating temperature h.IP(sealing requirements) |
| Q7: How long is your production lead time? |
A: It needs 7 to 15 days for standard products, 10 to 20 days for
simple customized products,
15 to 40 days for complex customized porducts. |
| Q8: What's your delivery port? |
| A: Our delivery port is Shenzhen |
| Q9: How do you delivery our goods? |
A: Usually small orders can be deliveried by air, big orders can be
deliveried by sea.
It can be negotiated before delivering. |
| Remark: |
| If you have any other question, pls contac us without any
hesitation. |
