Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min

    Buy cheap Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min from wholesalers

    Buy cheap Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min from wholesalers
    • Buy cheap Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min from wholesalers

    Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min

    Ask Lasest Price
    Brand Name : JARCH
    Model Number : JSR-SP050
    Certification : CE,FCC,ROHS
    Price : US$100-300/PER PIECE
    Payment Terms : T/T,PAYPAL
    Supply Ability : 1000PCS/PER WEEK
    Delivery Time : 5-8 WORKING DAYS
    • Product Details
    • Company Profile

    Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min

    Product Description

    JSR-SP050 Series Separate Slip Ring, 50.8 mm through hole diameter (applicable to any <=50.8 mm), 120 mm outside diameter, 1-126 circuits, aluminum alloy structure of the integral precision conductive sliding ring. Support signal (2A), or 10A power supply current, voltage 380VAC/24VDC.


    Separate slip rings are provided to solve the problem of 360 degree rotational connection by combining separated rotors and contact brushes in some applications without full enclosure due to size limitations. It is suitable for all kinds of small and precise instruments or super-large rotating shaft applications. At the same time, we can customize various sizes of separated sliding rings according to your specification needs.


    Precise 50.8mm Separate Slip Ring For Centrifuge Test Machine 300Rpm / Min

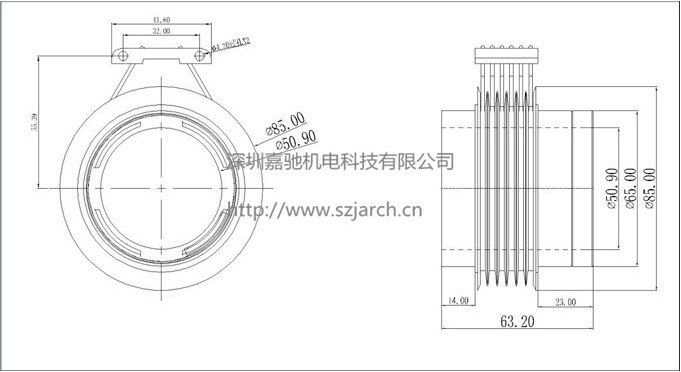

    Drawing of Cable reel drum Precise 50.8mm separate slip ring

    seprate slip ring1.png

    Features


    1. Precious metal contact ensures super long working life.
    2. Gold gold contacts with very low contact resistance.
    3. Compatible data bus protocol
    4. Smooth running
    5. Low torque
    6. Compact structure


    Applications


    1. industrial machinery:
    Drilling platform, winding machine, end face processing machine, hot rolling machine
    2. rotary table:
    Winding machine, filling machine, bottle blowing machine, amusement equipment
    3. cable reel:
    Port machinery, hoisting and lifting equipment, Luqiao machinery and tower
    4. test equipment:
    Centrifuge test stand, separator and tester
    5. robot:
    Packaging equipment, stacking machine, process control equipment, press machine
    6. exhibition / display equipment:
    Car booth, revolving door, product booth, rotary restaurant
    7. medical equipment:
    Shadowless operating lights, helicopters, radar communication equipment


    Shaft Mounted of Cable reel drum Precise 50.8mm separate slip ring

    .jpg


    RFQ

    1.What technical data should be provided for our customized slip ring,hose reel,carbon brush,rotary union model.

    A:

    If you want to costomize the special slip ring model, you need provide details as below:

    a. Operatring speed(RPM)
    b. The type of installation

    c. Outline size

    d. Channels(the No. of single wire besides cable)
    e. Rated voltage & current for power rings and signal rings

    f. The signal type and related parameters(very important)

    g. Operating temperature h.IP(sealing requirements)


    2.How long is your production lead time?


    A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
    15 to 40 days for complex customized porducts.
