50 Ft Hose Retractable Hose Reel Ultimate Duty Steel Shaft For Vacuum Cleaner,oil hose reels

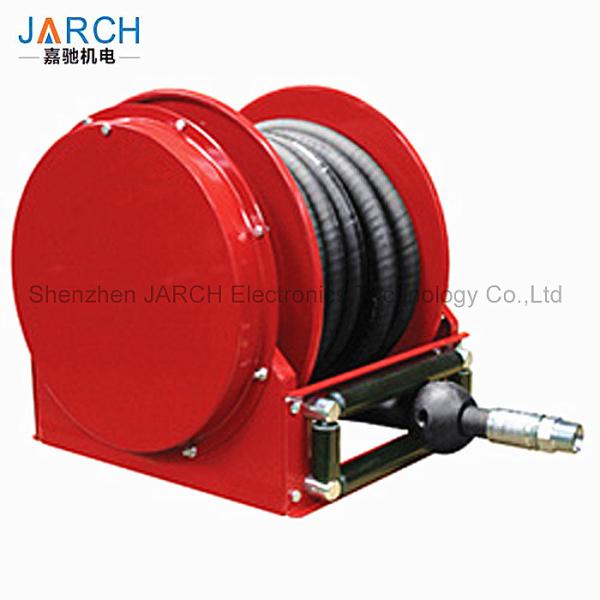

JARCH 50 ft. Hose Retractable cable reel for vacuum cleaner,Ultimate Duty Low Profile Steel Reel Vacuum Hose Reels

Product Description

Vacuum Hose Reels--Ultimate Duty Low Profile Reel

JARCH's series SD10000 hose reels are designed to facilitate larger diameter 3/4" and 1" hose up to 50 ft. They feature a high quality external drive spring and a heavy gauge all-bolted together frame. This is the most compact reel in its class, making it ideal for mounting in truck cabinets or other areas where space is limited.

Reel Specifications and Dimensions

Benefits

***Robust roller guides - High impact UHMW composite roller guides have outstanding wear and corrosion resistance.

***Containerized external drive spring is easily and safely serviced.

***Ductile iron fluid path is strong and reliable.

***Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life.

CAD Drawings

50 ft. Hose Retractable cable reel for vacuum cleaner,Ultimate Duty Low Profile Steel Reel Vacuum Hose Reels

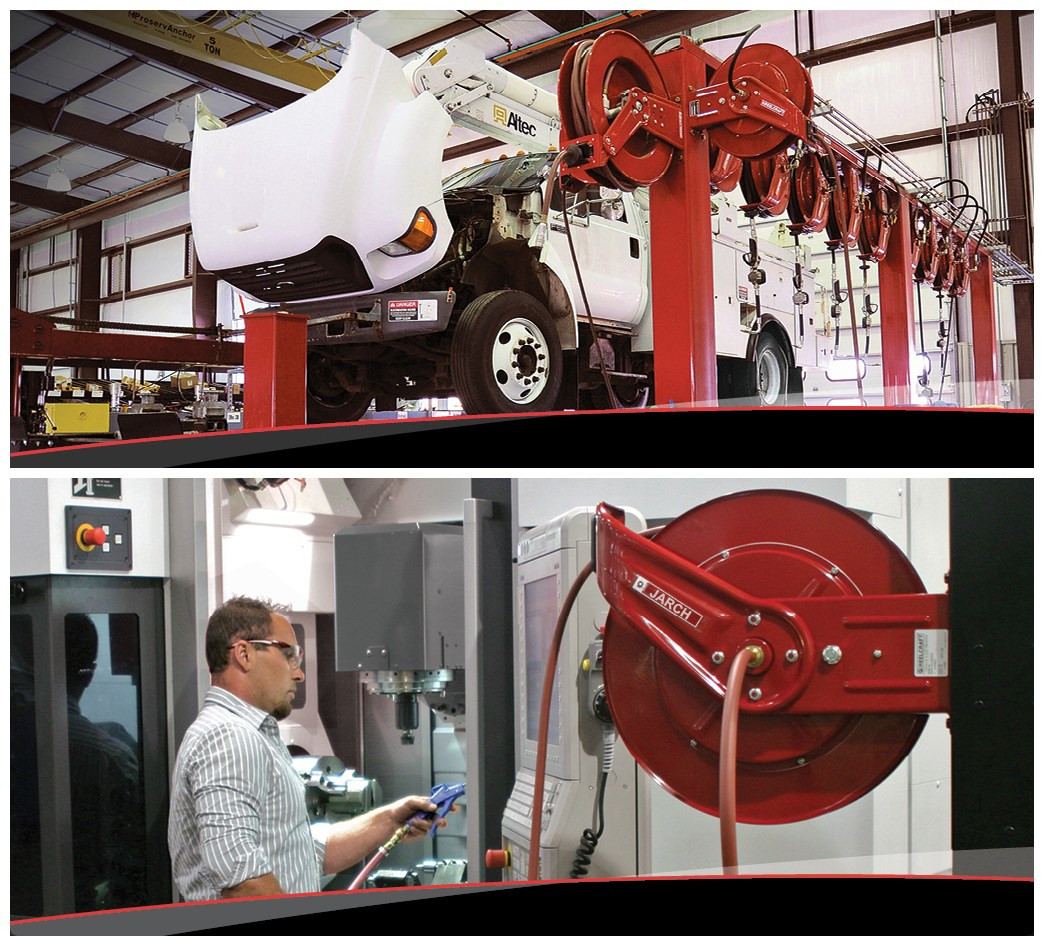

Application

50 Ft Hose Retractable Hose Reel Ultimate Duty Steel Shaft For Vacuum Cleaner,oil hose reels

Jarch main products:

1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

Packaging & Shipping

Packaging Details:	Standard Export carton Package
Delivery Details:	Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT......

100 ft. Reinforced steel Heavy Duty Dual Pedestal Hose Reel Long life drive spring Grease Cable Reels

1.How do I increase or reduce spring tension?

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.

To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

2.How do I install a new drive spring and set pre-turns?

We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.

3.Can my spring driven reel be made "constant tension"?

While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.

4.Material leaking from swivel

O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.

Swivel maybe loose or not enough pipe thread sealant on shaft threads
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
