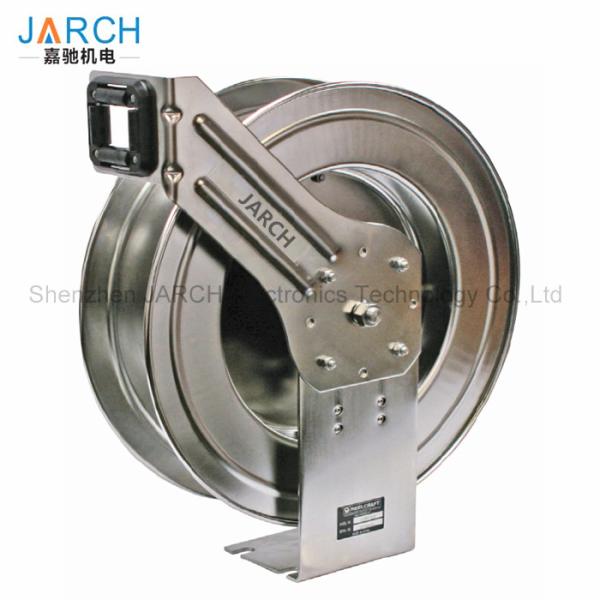

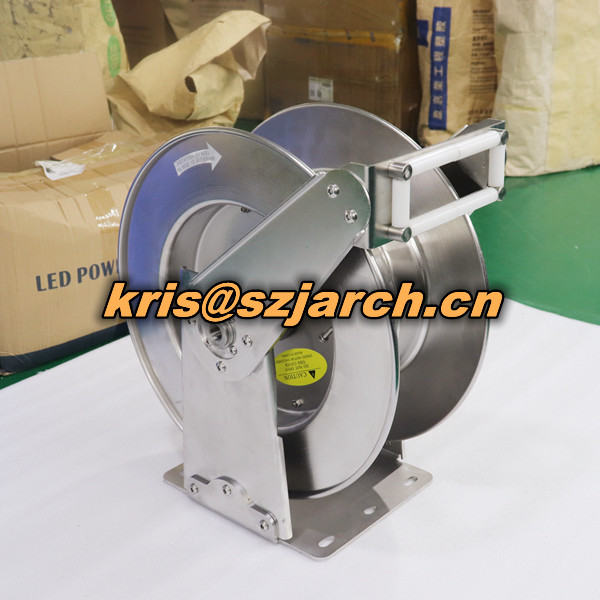

Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water

    Buy cheap Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water from wholesalers

    Buy cheap Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water from wholesalers
    • Buy cheap Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water from wholesalers
    • Buy cheap Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water from wholesalers

    Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water

    Ask Lasest Price
    Brand Name : JARCH
    Model Number : JSR-scr
    Certification : CE,FCC,ROHS
    Price : USD$50-150/PCS
    Payment Terms : T/T, MoneyGram, Western Union, D/P,PAYPAL
    Supply Ability : 10000PCS
    Delivery Time : 5-8 WORKING DAYS
    • Product Details
    • Company Profile

    Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water

    JARCH home application Spring Loaded Stainless Steel Water Reels Industrial Automatic Retractable Thermal Cable Reel for Crane

    More details about stainless steel hose reel in PDF click here:stainless steel reel 1-2.pdf


    Product Description

    JARCH's stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include Viton O-rings. Note: Standard latch parts are made from aluminum. Stainless latch parts and fluid path are available as a standard option by placing a -S at the end of the part number. Example: OLS-S

    Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water


    Reel Specifications and Dimensions
    Part NumberTH86050 OMP
    SeriesTH80000
    Weight (lbs)99
    Hose I.D. (in)3/8"
    Hose O.D. (in).710
    Hose Length (ft)50
    Pressure (psi)2000
    Hose End (in)3/8 NPT(M)
    Inlet (in)3/8 NPT(F)
    Reel Outlet (in)3/8 NPT(F)
    Hose IncludedYes
    Max Temperature (°F)210
    A25.375"
    B24"
    C8.125"
    D12.875"
    E10"
    F6"

    Fluid Path Materials
    Seal TypeAflas
    Swivel MaterialSteel
    Fluid Path CastingSteel

    Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water

    Benefits


    ***Reinforced steel - The stainless steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight;


    ***Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel;


    ***Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life;


    ***Quality finish and corrosion resistant - Stainless steel components offer the maximum protection from premature corrosion.


    Application

    Automatic Retractable Hose Reel Stainless Steel Spring Loaded For clean water


    Packaging & Shipping
    Packaging Details:Standard Export carton Package
    Delivery Details:Delivery time for Sample: 3 days / Delivery time for Order depends on quantity
    Shipping:BY DHL, FedEx, UPS or TNT......

    MSpring Retractable Gas Welding Hose Reel Included 50 feets Host cable reels

    ***Can hand crank reels be converted to motor driven reels?

    Yes, jarch has a number of conversion kits. The reel model and motor type will need to be verified. Listed below are some of the available conversion kits for Series 30000 reels. Contact customer service for more support.

    A switch will also be required for all motor driven reels. jarch has several types of switches and speed controls available. These switches are motor size specific and must be wired properly for the hose reel to function correctly. Have your hose reel model number ready and consult customer service for switch recommendations.


    ***Can I adjust the guide opening position on an enclosed model hose reel?


    Yes, you can adjust the guide opening position on a reel. Please follow instructions below for your type of reel.


    1. Pull hose out of opening and latch into position.
    2. Remove (4) nyloc nuts on the cover.
    3. Pull enclosure off and rotate to desired position.
    4. Replace cover and tighten the (4) nyloc nuts.

    Duel Model

    1. Pull hose out of opening and latch into position.
    2. Remove (4) nuts on base.
    3. Pull cover off and remove rubber inserts.
    4. Determine desired guide position and replace rubber inserts in slots not being used.
    5. Place cover on base studs in required position and tighten (4) nuts on base.
