JARCH 12mm/120mm/500mmThrough Bore hole Slip Rings factory,Hollow
Shaft Through Bore Slip Ring Rotary Joint Electrical
Product Description
JARCH TH Series through bore slip rings are ideally suited for
electric slip ring applications where signals and power need to be
transferred, and a through hole is required to pass either a shaft
or other feed through.
The TH100 uses JARCH's fiber brush technology which offers several
advantages over conventional slip ring contacts including multiple
points of contact per brush bundle, low contact force and low
contact wear. It provides an economical, readily available solution
when a compact through-bore configuration is required. This unit
provides a 6.0mm through-bore for routing hydraulic or pneumatic
lines. The 2~5 amps /circuit are available in 1-24 ring.
Benefits
1. Designed for through bore hydraulic or pneumatic rotating shaft
installation
2. Uses fiber brush technology which offers several advantages over
conventional slip ring contacts including multiple points of
contact per brush bundle
3. Standard, off-the-shelf
4. Gold plated ring and Gold alloy brush
5. Support power,signals transmitting
6. Rings combination is available

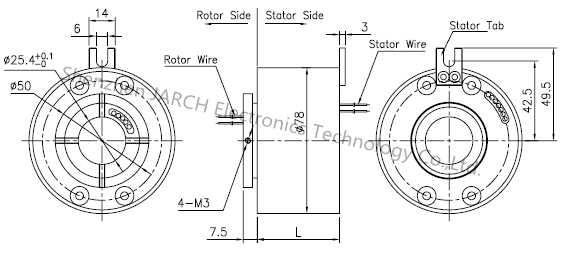

Demension
Installation Instructions:Shaft/Flange Mounted
Dimension L To Be Advised When Ring And Current Details Are Options
. Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or
Industrial Machinery
Applications
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
JARCH main products:
Company Information
JARCH Company is a professional Slip Ring & Routry Joint
manufacturer in Shenzhen, China. JARCH has become one of the
best-known Chinese brands in the world for high quality slip rings
and first-rate services. Since we were founded in 1998, we have
been committed to innovating, developing and manufacturing high
quality slip rings and providing perfect rotation solutions for
customers around the world.
FAQ
| Q1: Are you a factory or a trading company? |
| A: We are a professional manufactory with High-level R & D team. |
| Q2: How many types of the slip rings do you have? |
A: We can supply all kinds of the slip rings.Such as minitary slip
ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD
combined-type,
disc slip ring,wind power slip ring,solar power slip
ring,through-bore slip ring, etc. |
| Q3: Can you supply the slip rings with high frequency signals
and(or) optical communication signals. |
| A: Yes, we can supply mixed signals slip rings as your request. |
| Q4: what's the working life of your slip rings. |
A: 30~50 millions revolutions for standard ones, 50~80 millions
revolutions for special ones,
We also can supply much higher revolutions as your special
requirement. |
| Q5: Do you supply OEM and ODM ? |
| A: Yes, we supply OEM and ODM. |
If you have any questions, pls contact us without any hesitation.
