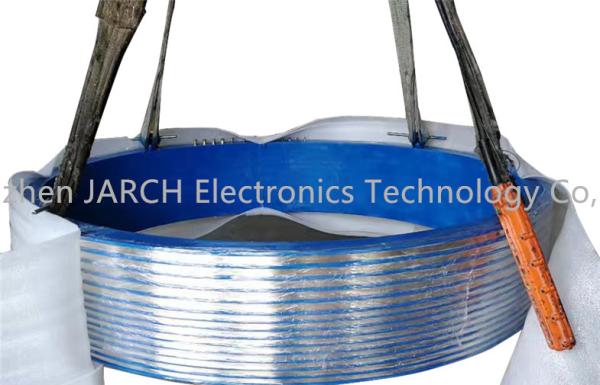

2 Ring Collector Ring Assembly Motor Slip RIng Assembly with Carbon
Brush Holder
Quick Details:
| Model Number: | JSR-SP2000-14P30-1 | ring: | 14 |
| Outer Size: | 2m | Circuits: | 2~72 |
| Volt AC/DC(V): | mV~380Vac/Vdc | Current(A): | 14 circuits 30A |
| Speed(rpm): | 250~500RPM | Assembly | carbon brush and cabon brush holder |
Our slip rings are unsurpassed in the industry for their quality
and versatility.
1. Rings:In addation to Bronze,copper,red brass,stainless steel and
steel ring compostions can be ofred. We can manufacture rings from
any special alloy specified by the customers,as we have our own
non-ferrous casting facilities in house.
2. Leads: Slip rings feature both rectangular and threaded leads in
either brass or copper. We also manufacture slip rings in large
quantities with cable leads.
3. Cores: We offer slip rings with diferent core materials
including steel,cast iron and moulded core.
4. Insulation: Our slip ring can be used for high temperature and
critical operating conditions. Moulded slip rings with special
additives and fillers are provided for different applications. Our
manufacturing and designing capabilities can provide range of
standard and custome slip ring units.We manufacture slip rings in
fabricated designs where the core is insulated with fiber
glass,moulding mica and epoxy.The rings are shrunk fit on the cores
with suitable insulation in between gaps. The size range includes
slip ring up to 1 meter diameter or as per customers'
Benefits:
· Unique signal handling performance with minimal electrical
circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
Applications:
• Electrical heating roller.
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Jarch main products:
1.
Fiber optic rotary joint series
2.
Through bore slip ring series
3.
Electro optical slip ring series
4.
Hybrid slip ring series
5.
Pneumatic rotary joint series
6.
Hydraulic rotary union series
7.
Capsule slip ring series
8.
Pancake slip ring series
9.
High current slip ring seriels
10.High
speed slip ring series
11.Thermocouple
slip ring series
12.Miniature
slip ring series
13.Wind
turbine slip ring series
14.Ethernet
slip ring series
15.Explosion
proof slip ring series
16.Mercury
slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen,
China. JARCH has become one of the best-known Chinese brands in the
world for high quality slip rings and first-rate services. Since we
were founded in 1998, we have been committed to innovating,
developing and manufacturing high quality slip rings and providing
perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has
established long term business relationships with transnational
corporations, research institutes, military-industry departments,
famous universities as well as a lot of companies in various
industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your
project's requirements for performance, testing, qualification and
delivery. Our teams understand the importance of comprehensive
project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If
an assembly from our standard model does not fit your requirements,
our design team will work with you to design a slip ring assembly
that will meet your company's exact needs. With over 19 years of
experience JARCH has amassed over 10,000 drawings, thousands of
custom slip ring designs and experiences supporting customers
worldwide.
FAQ
| Q1: Are you a factory or a trading company? |
| A: We are a professional manufactory with High-level R & D team. |
| Q2: How many types of the slip rings do you have? |
A: We can supply all kinds of the slip rings.Such as minitary slip
ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD
combined-type,
disc slip ring,wind power slip ring,solar power slip
ring,through-bore slip ring, etc. |
| Q3: Can you supply the slip rings with high frequency signals
and(or) optical communication signals. |
| A: Yes, we can supply mixed signals slip rings as your request. |
| Q4: what's the working life of your slip rings. |
A: 30~50 millions revolutions for standard ones, 50~80 millions
revolutions for special ones,
We also can supply much higher revolutions as your special
requirement. |
| Q5: Do you supply OEM and ODM ? |
| A: Yes, we supply OEM and ODM. |
| Q6: What technical data should be provided for our customized slip
ring model. |
A: If you want to costomize the special slip ring model, you need
provide details as below: a.operatring speed(RPM)
b.the type of installation c.outline size d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings f.the signal type and related
parameters(very important) g.operating temperature h.IP(sealing requirements) |
| Q7: How long is your production lead time? |
A: It needs 7 to 15 days for standard products, 10 to 20 days for
simple customized products,
15 to 40 days for complex customized porducts. |
| Q8: What's your delivery port? |
| A: Our delivery port is Shenzhen |
| Q9: How do you delivery our goods? |
A: Usually small orders can be deliveried by air, big orders can be
deliveried by sea.
It can be negotiated before delivering. |
| Remark: |
| If you have any other question, pls contac us without any
hesitation. |
