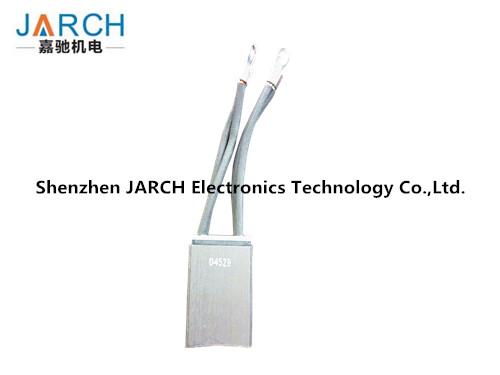

JARCH Electrographite Carbon Brush for DC motor
JARCH offers a wide range of high quality carbon brushes designed to achieve
improved reliability in motors and generators,material grades and brush design to manage all your requirements
providing high performance from:
- Low load running to high current
- Varying temperatures
- High to low altitude
- High to low humidity
- Quick Details:
| Carbon Brush D452B 25-40-60: |
| Grade | Density
A/cm³ | Resistivity
uΩ@cm | Shore Hardness
Mpa | Transverse Strength
Mpa | Contact Vol.Drop
ΔU(V) | Coef.Of Friction | Current Density
A/cm³ | Normal Max.Surface Speed
M/s |
| D452B | 1.46 | 1900 | | 8 | M | M | 6-10 | 75 |
Our electrical carbon brushes are made from low friction conductive
carbon materials including copper graphite, silver graphite,
natural graphite, electro graphite, resin bonded carbon and pitch
bonded carbon.
The combination of this wide range of specialist materials and our
highly experienced local technical support network allows us to
match brushes and holders to customer equipment for optimum
performance with minimal maintenance requirements.
Carbon graphite brushes used across a wide range of different
markets, including:
- Aerospace
- Automotive
- Construction
- Consumer Products
- Industrial
- Mining
- Paper & Printing
- Power Generation
- Renewable Energy
- Steel
- Transportation
JARCH main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring series
10.High speed slip ring series
11.Thermocouple slip ring series
12.Miniature slip ring series
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
1.What technical data should be provided for our customized slip ring model.
A:
If you want to costomize the special slip ring model, you need
provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for
simple customized products,
15 to 40 days for complex customized porducts.
Company Information
JARCH is a professional Slip Ring & Routry Joint manufacturer in
Shenzhen, China. JARCH has become one of the best-known Chinese
brands in the world for high quality slip rings and first-rate
services. Since we were founded in 1998, we have been committed to
innovating, developing and manufacturing high quality slip rings
and providing perfect rotation solutions for customers around the
world.
